home>產品中心>ibidi>儀器-流體剪切力系統

流體剪切力系統／泵系統ibidi Pump System－10902 10903 10904 10905

貨號：10902

貨號	產品名稱	規格
10902-S	ibidi流體剪切力系統	1套
10902-T	Ibidi二聯流體剪切力系統	1套
10906-Q	ibidi四聯流體剪切力系統	1套
10903	流體單元	1臺
10904	四聯流體單元	1臺
10905	ibidi泵	1臺
10964	灌流管：黃綠色，50cm管長，1.6mm內徑，10ml儲液管（另有多種規格，歡迎詳詢）	3組／包
另配	筆記本	1臺

詳情

參數

實驗應用

產品說明書

詳細請電詢

參考文獻：

1. Integrin-YAP/TAZ-JNK cascade mediates atheroprotective effect of unidirectional shear flow

    L. Wang, J. Luo, B. Li, X. Tian, L. Chen, Y. Huang, J. Liu, D. Deng, C. Lau and S. Wan

   Nature, 2016, 10.1038/nature20602

2. In vivo modulation of endothelial polarization by Apelin receptor signalling

      H. Kwon, S. Wang, C. Helker, S. Rasouli, H. Maischein, S. Offermanns, W. Herzog and D. Stainier

    Nature communications, 2016, 10.1038/ncomms11805

3. FOXC2 and fluid shear stress stabilize postnatal lymphatic vasculature
A. Sabine, E. Bovay, C. S. Demir, W. Kimura, M. Jaquet, Y. Agalarov, N. Zangger, J. P. 1Scallan, W. Graber, E. Gulpinar, B. R. Kwak, T. Mäkinen, I. Martinez-Corral, S. Ortega, M. Delorenzi, F. Kiefer, M. J. Davis, V. Djonov, N. Miura and T. V. Petrova
The Journal of Clinical Investigation, 2015, 10.1172/JCI80454

4. Cdk5 controls lymphatic vessel development and function by phosphorylation of Foxc2
J. Liebl, S. Zhang, M. Moser, Y. Agalarov, C. S. Demir, B. Hager, J. A. Bibb, R. H. Adams, F. Kiefer, N. Miura, T. V. Petrova, A. M. Vollmar and S. Zahler
Nat Commun, 2015, 10.1038/ncomms8274

5. MicroRNA-126-5p promotes endothelial proliferation and limits atherosclerosis by suppressing Dlk1
A. Schober, M. Nazari-Jahantigh, Y. Wei, K. Bidzhekov, F. Gremse, J. Grommes, R. Megens, K. Heyll, H. Noels and M. Hristov
Nature medicine, 2014, 10.1038/nm.3487

6. Mechanotransduction, PROX1, and FOXC2 Cooperate to Control Connexin37 and Calcineurin during Lymphatic-Valve Formation
A. Sabine, Y. Agalarov, H. Maby-El Hajjami, M. Jaquet, R. Hägerling, C. Pollmann, D. Bebber, A. Pfenniger, N. Miura, O. Dormond, J.-M. Calmes, Ralf H. Adams, T. Mäkinen, F. Kiefer, B. Kwak and T. Petrova
Developmental Cell, 2012,

7. Endothelial JAM-A Guides Monocytes into Flow-Dependent Predilection Sites of Atherosclerosis
M. Schmitt, R. Megens, A. Zernecke, K. Bidzhekov, N. van den Akker, T. Rademakers, M. van Zandvoort, T. Hackeng, R. Koenen and C. Weber
Circulation, 2013, 10.1161/CIRCULATIONAHA.113.004149

更多文獻請來電咨詢！
產品說明書下載：

IN_1090X_pump_system.pdf

IN_1090X_pump_software.pdf (2.75 MB)

IN_1090X_pump_pulsatile_flow.pdf

IN_1090X_pump_pulsatile_flow.pdf (258.55 KB)

IN_1090X_pump_system_oscillating_flow.pdf

IN_1090X_pump_system_oscillating_flow.pdf (988.54 KB)

IN_1090X_pump_software.pdf

IN_1090X_pump_system.pdf (10.87 MB)

配套載玻片的選擇：下列載玻片能夠和ibidi流體剪切力配套使用。獨立滅菌包裝。
低剪切力：單通道培養載玻片，0.6mm高度單通道培養載玻片，0.8mm高度	中剪切力：六通道培養載玻片，0.4mm高度單通道培養載玻片，0.4mm高度 Y通道培養載玻片	高剪切力：六通道培養載玻片，0.1mm高度單通道培養載玻片，0.2mm高度

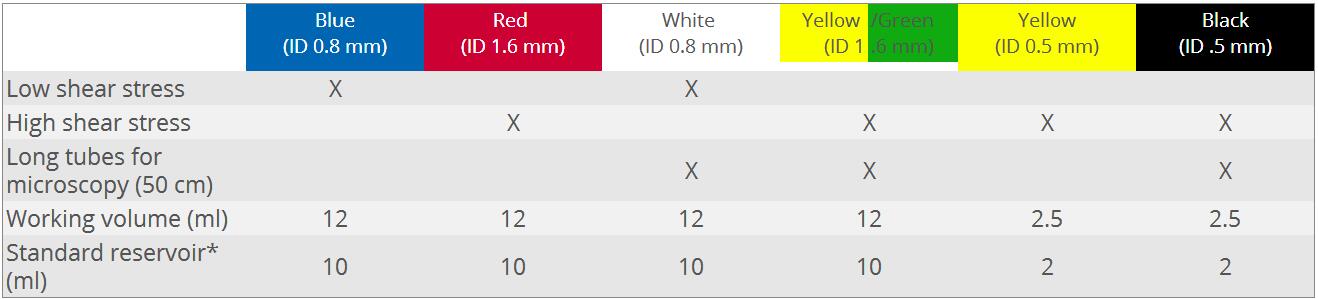

配套灌流管的選擇：可根據需要的剪切力大小選擇相應的灌流管
總括：

*儲液池可以更換，常規為10ml，可改配2ml或50ml
可根據需要的剪切力大小選擇相應的灌流管和載玻：注意：下列表中的剪切力計算采用的粘度參數是37℃10%血清的常規培養基的粘度（0.0072dyn s/cm2)

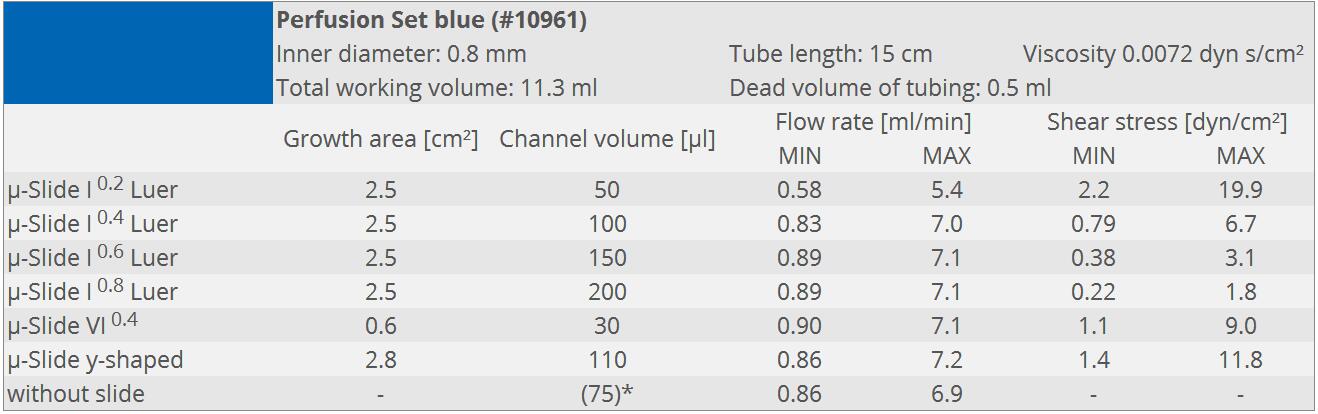

藍色灌流管

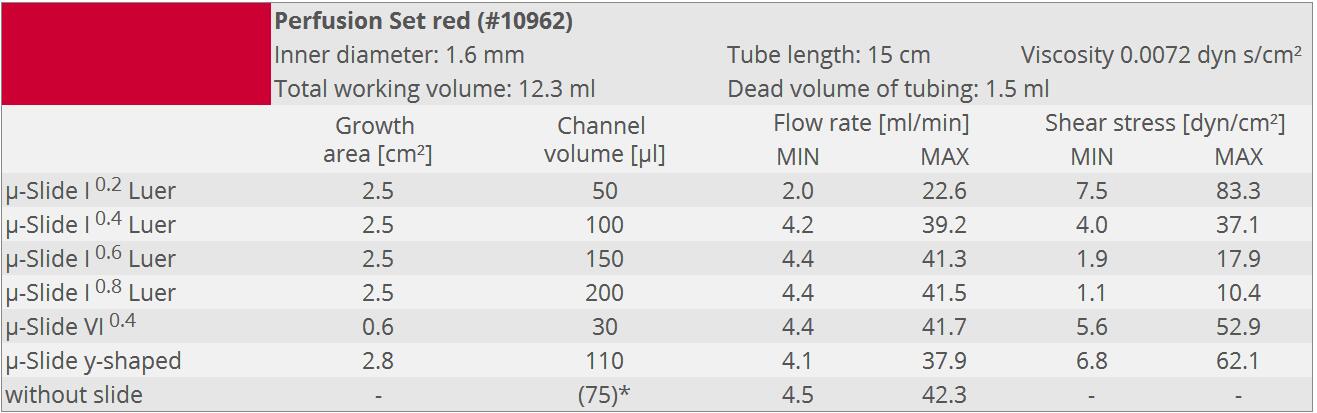

紅色灌流管

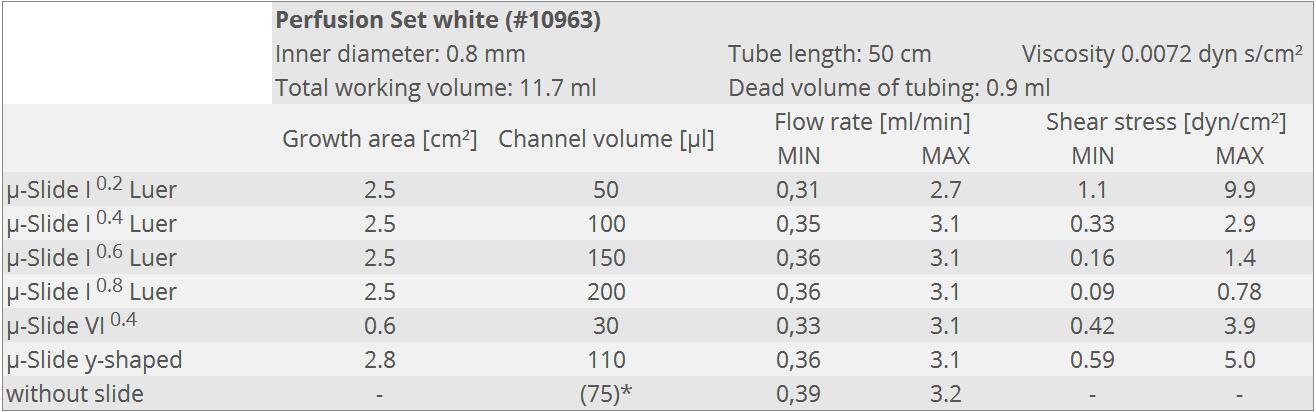

白色灌流管

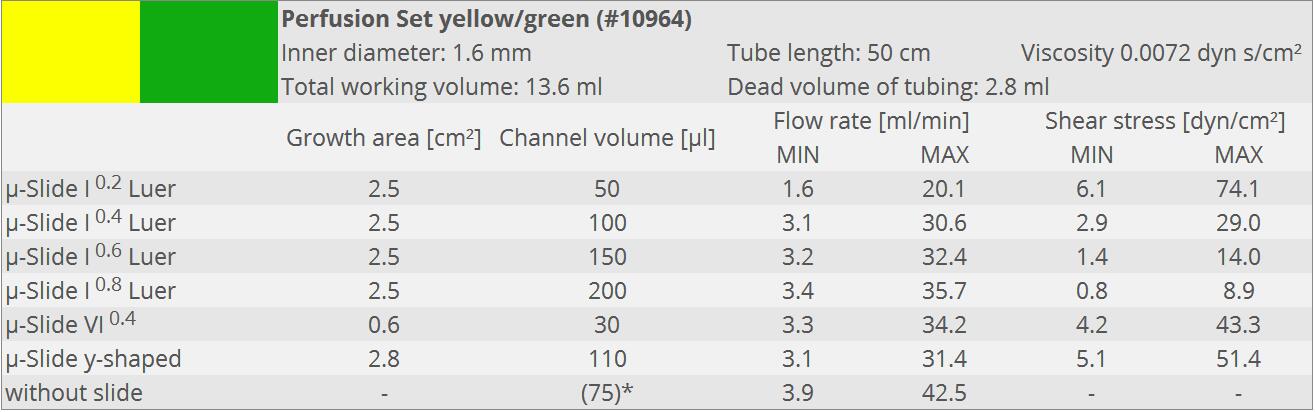

黃綠色灌流管

黃色灌流管

黑色灌流管
